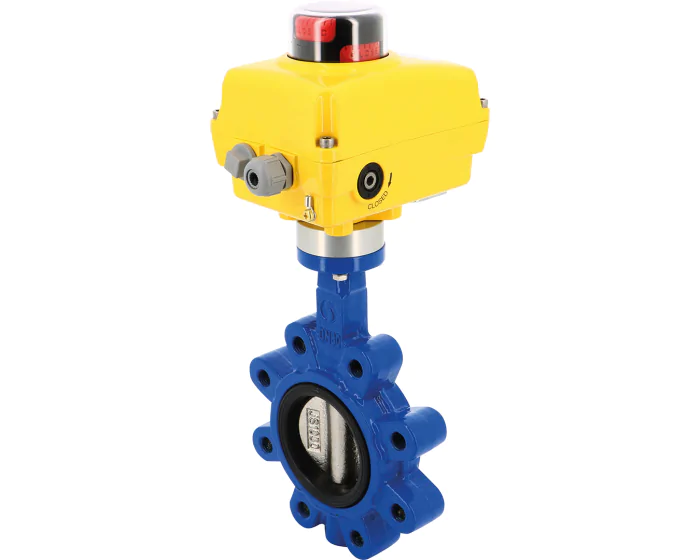

The 1133 LUG butterfly valve has a ductile iron body, 316 stainless steel disc and EPDM seat. It is actuated by an SA/NA electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 416 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN250 - 10'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 68.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 10 |
| Power (W) | 40 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Operating time (s) | 24.0 |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Ductile iron Concentric 50 | 262604023010 | S1004357 |
€484.79
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 65 | 262605023010 | S1004358 |
€493.76
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 80 | 262606023010 | S1004359 |
€504.94
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 100 | 262607023010 | S1004360 |
€518.73
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 125 | 262608023069 | S1004361 |
€649.74
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 150 | 262609023130 | S1004362 |
€1,161.26
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 200 | 262610023130 | S1004363 |
€1,306.56
(excl. btw)
|
add to cart |
| Between flanges PN10 Ductile iron Concentric 250 | 262611023150 | S1004364 |
€1,807.59
(excl. btw)
|
add to cart |
